ASTM A213 TP316L Stainless Steel Fin Tube Extruded Type For Air Cooler

Name: ASTM A213 TP316L Stainless Steel Fin Tube Extruded Type For Air Cooler
Brand: Yuhong
Price: 1 USD

Wholesale ASTM A213 TP316L Stainless Steel Fin Tube Extruded Type For Air Cooler from china suppliers

Brand Name : Yuhong

Model Number : TP304, TP316L, TP321, TP347H

Certification : DNV, BV, PED, LR, ABS, TS, CCS

Place of Origin : China

MOQ : 100KGS

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 1000 ton/month

Delivery Time : 7-45DAYS

Packaging Details : Ply-wooden Case /Iron Case/ Bundle with Plastic Cap

Base Tube Specification : EN10217-7

Material : Aluminum 1060

Finheight : 15mm

Size : customized

Product : Fin Tubes or Finned Tube

Fpi : 11

Origin : China

Application : Heat Exchangers, Air Coolers, Condensers

Contact Now

ASTM A213 TP316L Stainless Steel Fin Tube Extruded Type For Air Cooler

Product Overview

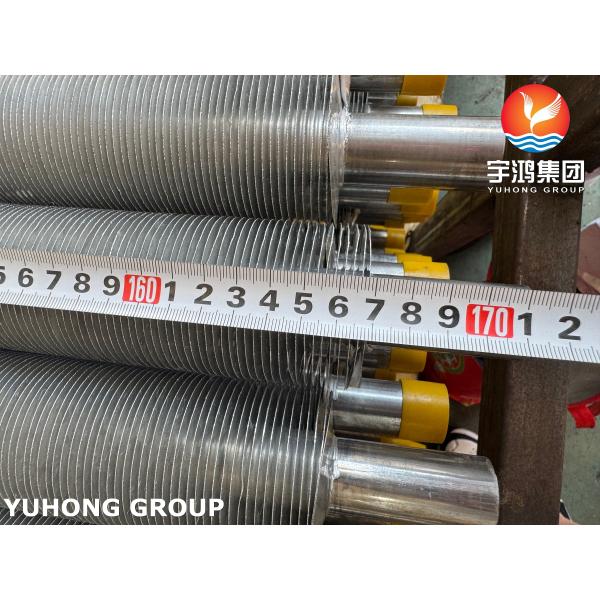

The fin tube is produced using ASTM A213 TP316L seamless stainless steel tubes with extruded Aluminium 1060 fins. The extrusion process creates a metallurgical bond between tube and fin, ensuring excellent thermal performance, mechanical strength, and long service life in demanding cooling applications.

Type	Description	Base tube	Fin specification (mm)
Type	Description	O.D. (mm)	Fin pitch	Fin height	Fin thick
Embedded	G-type fin tube	16-63	2.1~5	<17	~0.4
Extruded	Single metal / Combined metal	8-51	1.6~10	<17	0.2-0.4
	Low fin tube / T-type fin tube	10-38	0.6~2	<1.6	~0.3
	Bamboo tube / corrugated tube	16-51	8.0~30	<2.5	~0.3
Wound	L / KL / LL fin type	16-63	2.1~5	<17	~0.4
String	String fin tube	25-38	2.1-3.5	<20	0.2-0.5
U-type	U-type fin tube	16-38	/	/	/
Welding	HF-welding fin tube	16-219	3~25	5~30	0.8-3
	H / HH type fin tube	25-63	8~30	<200	1.5-3.5
	Studed fin tube	25-219	8~30	5~35	φ5-20

Chemical Composition of TP16L Stainless Steel (Base Tube)

Property	Content (wt%)
Carbon (C)	≤ 0.03
Manganese (Mn)	≤ 2.00
Phosphorus (P)	≤ 0.045
Sulfur (S)	≤ 0.030
Silicon (Si)	≤ 1.00
Chromium (Cr)	16.0 – 18.0
Nickel (Ni)	10.0 – 14.0
Molybdenum (Mo)	2.0 – 3.0
Nitrogen (N)	≤ 0.10
Iron (Fe)	Balance

Mechanical Properties ASTM A213 TP316L (base tube)

Property	Value
Tensile Strength (MPa)	≥ 485
Yield Strength (MPa)	≥ 170
Elongation (%)	≥ 40
Hardness (HB)	≤ 217

Advantages of Extruded Fin Tube

Excellent corrosion resistance from TP316L stainless steel
Superior thermal conductivity of Aluminium 1060 fins
Strong integral bond from extrusion process (resistant to thermal cycling)
Long service life with low maintenance
Easier cleaning compared with L, LL, KL, and G-type fins

Applications in Air Cooler

Air-cooled heat exchangers in petrochemical and refinery plants
Fin-fan coolers in power generation
Condensers and gas coolers in chemical and fertilizer industries
Offshore and marine coolers, where corrosion resistance is essential
